SX8400 Four line Professional Music-On-Hold adapter

Click here to order a newer version of this item

The SX8400 is a new Music-On-Hold adapter to provide the ultimate interface solution in message and music on hold applications for regular telephones.

This device delivers outstanding audio quality from any external audio source and supports up to 4 lines and up to 50 telephones when used with standard phones. It activates via Hold or Flash button on any phone, requires no attachments to the phone and does not use touch tones such as star "*" or "#" etc.

The SX8400 works on cordless phones just by pressing the Hold button as well, it provides an easy to use solution in message on hold applications for the standard 1, 2 ,3 or 4 line regular telephones.

Music On Hold Adapter/ Controller functions:

  • Provides Music-On-Hold function on all the telephones and extensions up to 4 lines and up to 50 telephones
  • Activates using the telephones HOLD button or Flash button
  • Supports via the HOLD* button most models of regular standard telephones such as:

    AT&T: 21070, 262, 272, 412, 422, 4952, 612, 622, 712, 722, 732, 742, 752, 812, 822, 830, 832, 842, 843, 853, 854, 874, 902, 912, 922, 944, 945, 952, 953, 954, 955, 962, 972, 964, 982, 992, SIGNATURE, FT483, FT484, 974, 984, 1040, 1070, 1080, 90240, 90529, 90889, 2462, E2562, E2662, EP5962

    Brother Quatro: 412

    Bell: 223, 232, 259, 261, 268, 367, 470, 52905, Sonecor 412, 412CID, 4900, BE5200, BE5300, Techline 420

    Casio: SI460, SA400

    Cortelco: 2720, 2740, 4125, 412541TP127S, TP127S

    Epic: ET4000

    Execufone: ITC-420, 420i

    GE: 187, 2-9315-A, 2-9318, 2-9435-A -B -C, 2-9436-A, 2-9438-A, 2-9450-A -B -C -D -E -F, 2-9439-A to -EGL, 2-9451A, 2-9481, 2-9487GE2-A, 2-9488, 2-9638-A, 2-9975, 2-9488GE2-A, GE 2-9638-A, GE 2-9975, GE 25403, GE 25404

    Pac Bell: 261, FE5350

IBM: 412, 412CID, 4900

Northern Telecom: Unity

Phonemate: PMG-4600, PMG-2400

Panasonic: KX-T3110, 3120, 3122, 3135, 3145, 3155, 3160, 3165, 3170, 3175, 3280, 3980-H, 3980-R7, 3981, KX-TC930, KX-TS20, KX-TS21, KX-TS25, KX-TS27, KX-TS208, VA-8400, KX-T3110, KX-T3120, KX-T3122, KX-T3135, KX-T3145, KX-T3155,
KX-T3160, KX-T3165, KX-T3170, KX-T3175, KX-T3280, KX-T3281, KX-T3980-H,
KX-T3980-R7, KX-T3981, KX-TC930, KX-TG2000, KX-TG2720, KX-TG2730, KX-TG2740,
KX-TG4000, KXTG4000B, KXTG2000B, KX-TG4500, KX-TG5480, KX-TG6500, KX-TG6502, KX-TG6700, KX-TG6702,
KX-TG650, KX-TGA200, KX-TGA400, KX-TGA420, KX-TGA650, KX-TGA670, KX-TS20,
KX-TS21, KX-TS25, KX-TS27, KX-TS208, KX-TS3282, KX-TS4100, KX-TS4200,
KX-TS4300, VA-8400, PQLV30024ZB

Qwest: NSQ412

Radio Shack: 206, 208, 209, 210, 212, 411, 412, 612, 43-373D, 43-430, 43-642, ET-180, 43-470, ET-184, ET-192, ET-193, 43-622, 43-469 , 1710, 1753

RCA: 25403 RCA, 25413RE3, 25414RE3, 25415RE3, H5400RE3 (works via Hold on cordless station as well), 25423, RCA 25424, RCA 25425, RCA 25450

Sony: IT-M804

SBC: 2105, 4000, SBC 2105, SBC 4000, SBC 410, SBC 420

Southwestern Bell: FT325, FT360, FT365BL FT383, FT412, FT483, FT484

Sprint/Radio Shack: SP-702 / 43-5702, SP-705

Starplus II: HAC2605, HAC2606

TMC: ET4000

TT Systems: 4012, 412, 412CID, 4900, 4300, 5100, 5200, 5300, 7993

Uniden: UB-420, Uniden 420

Verizon: NSQ412

Vtech: 4121

plus most other 2 line or 3 line telephones

  • * Utilizing avanced "voice activation" technology this product activates on any phone by just pressing Hold button (activation time may be a few seconds longer on some phone models), also this product can work on any phone (on the list or not on the list) via Flash then Hold
  • Simple installation: Just connects to wall jacks or connects to one of the phones only!

Features:

  • Superior sound quality with any external audio source.
  • Accepts virtually any audio source such as: digital player, radio, CD player, PC sound card , etc.
  • Compatible with corded or cordless telephones in an office
  • Compatible with features such as caller ID, call waiting, 3 way calling, centrex lines, call hunting, call rotary, and answering machines etc. (please note: in call waiting provides music on hold for one call)
  • Provides RCA audio input jack
  • Supports both KSU type phone systems (via FLASH- if installed in front of the control box) or Non-KSU regular phones
  • Provides audio test button and call test functions.
  • Provides full LED indications of lines in use (solid ON) or lines on HOLD (blinking)
  • Provides customized configuration settings via a 2 simple 3 position slide switch
  • Attractive design enclosure with full wall mounting capability
  • Package contents: SX8400 device, 2 phone cords, 6 feet long audio cable, AC adapter (110v to 12vac), Manual, Warranty

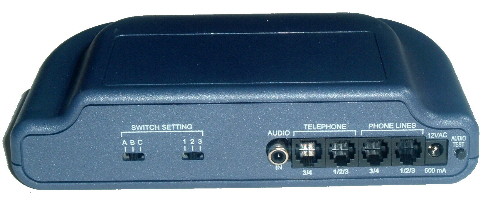

User controls on SX8400:

  • RCA jack for audio input
  • Two 3 position slide switches for standard telephones configurations
  • Telephone jacks
  • LED status lights to indicate lines in use or on Hold
  • Audio Test tactile switch
  • 12VAC jack

Summary:

  • Professional adapter supports any telephone
  • Supports up to 4 lines, 50 telephones
  • Supports cordless phones by just pressing "Hold"
  • 3 year warranty
  • Manufactured in USA

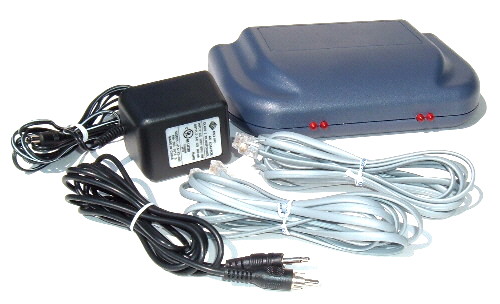

Items included with SX8400:

  • SX8400 Music-On-Hold adapter
  • AC power adapter 110V to 12VAC 600ma
  • 3.5mm (1/8 inch) male to RCA male audio cord 6 feet long
  • 2 RJ14 phone cords
  • User’s manual

Click here to view the product specifications and manual (PDF Format)
